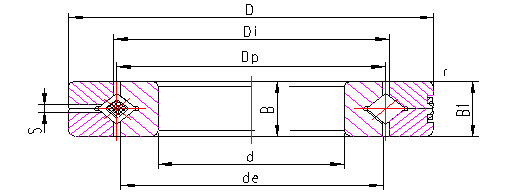

Main dimensions						shoulder height		load rating (axial)		load rating (radial)		weight
Bearing
Type	inner diameter	outer diameter	Roller pitch circle diameter dp	width	Greasin	r	de	Di	Ca	Coa	Cr	Cor
					hole
	d	D		B B1	S				kN	kN	kN	kN	Kg
SX011814	70	90	80	10	1.2	0.6	79.5	80.5	18	60	12	30	0.3
SX011818	90	115	102	13	1.2	1	101.5	102.5	26	96	17	47	0.4
SX011820	100	125	112	13	1.2	1	111.5	112.5	28	106	18	52	0.5
SX011824	120	150	135	16	1.5	1	134.4	135.6	41	153	26	75	0.8
SX011828	140	175	157	18	1.5	1.1	156.3	157.7	64	237	41	116	1.1
SX011832	160	200	180	20	1.5	1.1	179.2	180.8	69	272	44	133	1.7
SX011836	180	225	202	22	2	1.1	201.2	202.8	98	381	63	187	2.3
SX011840	200	250	225	24	2	1.5	224.2	225.8	106	425	68	208	3.1
SX011848	240	300	270	28	2	2	269.2	270.8	149	612	95	300	5.3
SX011860	300	380	340	38	2.5	2.1	339.2	340.8	245	1027	156	504	12
SX011868	340	420	380	38	2.5	2.1	379.2	380.8	265	1148	167	563	13.5
SX011880	400	500	450	46	2.5	2.5	449	451	385	1699	244	833	24
SX0118500	500	620	560	56	2.5	3	558.8	561.2	560	2538	355	1244	44
