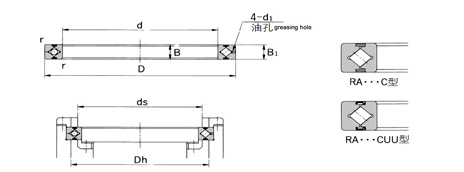

Bearing Type	main dimension						Shoulder		Basic load rating(radial)		weight
							height
	inner ring	outer ring	Roller pitch circle diameter dp	width	greasing hole	r	ds	Dh	C	Co	Kg
	d	D							kN	kN
				B B1	a
RA  5008C	50	66	57	8	1.5	0.8	53.5	60.5	5.1	7.19	0.08
RA  6008C	60	76	67	8	1.5	0.8	63.5	70.5	5.68	8.68	0.09
RA  7008C	70	86	77	8	1.5	0.8	73.5	80.5	5.98	9.8	0.1
RA  8008C	80	96	87	8	1.5	0.8	83.5	90.5	6.37	11.3	0.11
RA  9008C	90	106	97	8	1.5	0.8	93.5	100.5	6.76	12.4	0.12
RA 10008C	100	116	107	8	1.5	0.8	103.5	110.5	7.15	13.9	0.16
RA 11008C	110	126	117	8	1.5	0.8	113.5	120.5	7.45	15	0.15
RA 12008C	120	136	127	8	1.5	0.8	123.5	130.5	7.84	16.5	0.17
RA 13008C	130	146	137	8	1.5	0.8	133.5	140.5	7.94	17.6	0.18
RA 14008C	140	156	147	8	1.5	0.8	143.5	150.5	8.33	19.1	0.19
RA 15008C	150	166	157	8	1.5	0.8	153.5	160.5	8.82	20.6	0.2
RA 16013C	160	186	172	13	2	1.2	165	179	23.3	44.9	0.59
RA 17013C	170	196	182	13	2	1.2	175	189	23.5	46.5	0.64
RA 18013C	180	206	192	13	2	1.2	185	199	24.5	49.8	0.68
RA 19013C	190	216	202	13	2	1.2	195	209	24.9	51.5	0.69
RA 20013C	200	226	212	13	2	1.2	205	219	25.8	54.7	0.71
Note:
1. Code of sealed type is RE贩稶U.
2. Please use outer ring rotary when high precision is required.
