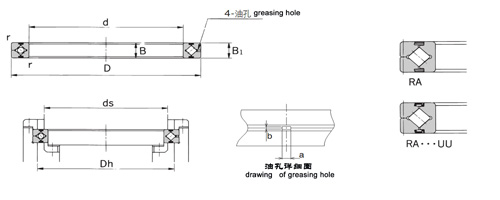

Bearing Type	Main dimensions							Shoulder height		Basic load rating(radial)		weight
			Roller pitch circle diameter dp		Greasing hole		r	ds	Dh	C	Co	Kg
	inner ring	outer ring		width						kN	kN
	d	D		B B1	a	b
RA  5008	50	66	57	8	2	0.8	0.8	53.5	60.5	5.1	7.19	0.08
RA  6008	60	76	67	8	2	0.8	0.8	63.5	70.5	5.68	8.68	0.09
RA  7008	70	86	77	8	2	0.8	0.8	73.5	80.5	5.98	9.8	0.1
RA  8008	80	96	87	8	2	0.8	0.8	83.5	90.5	6.37	11.3	0.11
RA  9008	90	106	97	8	2	0.8	0.8	93.5	100.5	6.76	12.4	0.12
RA 10008	100	116	107	8	2	0.8	0.8	103.5	110.5	7.15	13.9	0.16
RA 11008	110	126	117	8	2	0.8	0.8	113.5	120.5	7.45	15	0.15
RA 12008	120	136	127	8	2	0.8	0.8	123.5	130.5	7.84	16.5	0.17
RA 13008	130	146	137	8	2	0.8	0.8	133.5	140.5	7.94	17.6	0.18
RA 14008	140	156	147	8	2	0.8	0.8	143.5	150.5	8.33	19.1	0.19
RA 15008	150	166	157	8	2	0.8	0.8	153.5	160.5	8.82	20.6	0.2
RA 16013	160	186	172	13	2.5	1.6	1.2	165	179	23.3	44.9	0.59
RA 17013	170	196	182	13	2.5	1.6	1.2	175	189	23.5	46.5	0.64
RA 18013	180	206	192	13	2.5	1.6	1.2	185	199	24.5	49.8	0.68
RA 19013	190	216	202	13	2.5	1.6	1.2	195	209	24.9	51.5	0.69
RA 20013	200	226	212	13	2.5	1.6	1.2	205	219	25.8	54.7	0.71
