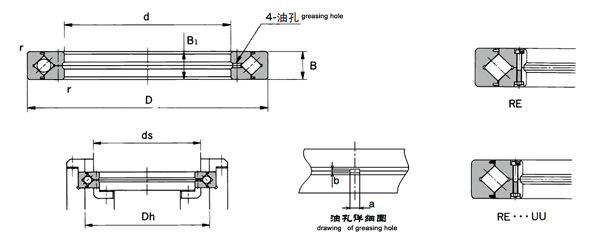

Bearing Type	Main dimensions							Shoulder height		Basic load rating(radial)		weight
	inner	outer	Roller pitch circle diameter	width			r	ds	Dh	C	Co
	ring	ring			Greasing hole
	d	D	dp	B B1	a	b				kN	kN	Kg
RE  5013	50	80	66	13	2.5	1.6	1	57.5	72	16.7	20.9	0.27
RE  6013	60	90	76	13	2.5	1.6	1	68	82	18	24.3	0.3
RE  7013	70	100	86	13	2.5	1.6	1	78	92	19.4	27.7	0.35
RE  8016	80	120	101.4	16	3	1.6	1	91	111	30.1	42.1	0.7
RE  9016	90	130	112	16	3	1.6	1.5	98	118	31.4	45.3	0.75
RE 10016	100	140	121.1	16	3	1.6	1.5	109	129	31.7	48.6	0.83
RE 10020		150	127	20	3.5	1.6	1.5	113	133	33.1	50.9	1.45
RE 11012	110	135	123.3	12	2.5	1	1	117	127	12.5	24.1	0.4
RE 11015		145	129	15	3	1.6	1	122	136	23.7	41.5	0.75
RE 11020		160	137	20	3.5	1.6	1.5	120	140	34	54	1.56
RE 12016	120	150	136	16	3	1.6	1	127	141	24.2	43.2	0.72
RE 12025		180	152	25	3.5	2	2	133	164	66.9	100	2.62
RE 13015	130	160	146	15	3	1.6	1	137	152	25	46.7	0.72
RE 13025		190	162	25	3.5	2	2	143	174	69.5	107	2.82
RE 14016	140	175	160	16	3	1.6	1.5	147	162	25.9	50.1	1
RE 14025		200	172	25	3.5	2	2	154	185	74.8	121	2.96
RE 15013	150	180	166	13	2.5	1.6	1	158	172	27	53.5	0.68
RE 15025		210	182	25	3.5	2	2	164	194	76.8	128	3.16
RE 15030		230	192	30	4.5	3	2	173	210	100	156	5.3
RE 16025	160	220	192	25	3.5	2	2	173	204	81.7	135	3.14
RE 17020	170	220	196.1	20	3.5	1.6	2	184	198	29	62.1	2.21
RE 18025	180	240	210	25	3.5	2	2	195	225	84	143	3.44
RE 19025	190	240	219	25	3.5	1.6	1.5	202	222	41.7	82.9	2.99
RE 20025	200	260	230	25	3.5	2	2.5	215	245	84.2	157	4
RE 20030		280	240	30	4.5	3	2.5	221	258	114	200	6.7
RE 20035		295	247.7	35	5	3	2.5	225	270	151	252	9.6
RE 22025	220	280	250.1	25	3.5	2	2.5	235	265	92.3	171	4.1
RE 24025	240	300	272.5	25	3.5	2	3	256	281	68.3	145	4.5
RE 25025	250	310	280.9	25	3.5	2	3	268	293	69.3	150	5
RE 25030		330	287.5	30	4.5	3	3	269	306	126	244	8.1
RE 25040		355	300.7	40	6	3.5	3	275	326	195	348	14.8
RE 30025	300	360	332	25	3.5	2	3	319	344	75.7	178	5.9
RE 30035		395	345	35	5	3	3	322	368	183	367	13.4
RE 30040		405	351.6	40	6	3.5	3	326	377	212	409	17.2
RE 35020	350	400	376.6	20	3.5	1.6	3	363	383	54.1	143	3.9
RE 40035	400	480	440.3	35	5	3	3.5	422	459	156	370	14.5
RE 40040		510	453.4	40	6	3.5	3.5	428	479	241	531	23.5
RE 45025	450	500	476.6	25	3.5	1.6	1.5	464	484	61.7	182	6.6
RE 50025	500	550	526.6	25	3.5	1.6	1.5	514	534	65.5	201	7.3
RE 50040		600	548.8	40	6	3	3.5	526	572	239	607	26
RE 50050		625	561.6	50	6	3.5	3.5	536	587	267	653	41.7
RE 60040	600	700	650	40	6	3	4	627	673	264	721	29
Note:
1. Code of sealed type is RE•••UU.
2. Please use outer ring rotary when high precision is required.
