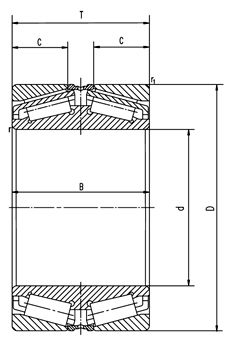

Bearing Type	Principal Dimensions					Basic Load Ratings		Limiting Speeds		Wt
	d	D	T	B	C	Cr	Cor	Grease	Oil
	mm					KN		r/min		kg
598/592DC	92.075	152.4	82.55	63.5	36.322	297	547	1800	2400	5.74
90381/90744K	96.938	188.912	107.59	31.75	46.038	466	702	1800	2400	11.6
687/672D	101.6	168.275	92075	69.85	41.275	357	648	1800	2400	8.18
861/854D	101.6	190.5	127	101.6	57.5	606	1020	1800	2400	15.6
HM926749/HM926710D	127.792	228.6	115.888	84.138	49.428	703	1142	1400	1900	18.9
31326X.K11.A160.200	130	280	144	44	66	1086	1649	1400	1900	40.4
442210	140	200	93.665	73.025	42	422	917	1300	1700	9.2
31328X.K11.A160.200		300	154	47	70	1244	1910	1300	1700	51
99575/99102CD	146.05	254	149.225	111.125	66.675	967	1887	1300	1700	28
31330X.K11.A180.230	150	320	164	50	75	1414	2196	1200	1500	59.6
NA46790-SW/46720CD	165.1	225.425	95.25	69.85	47.625	440	1120	1150	1400	10.5
173KH350+K	173	350	155	58	155	1500	2550	1000	1300	70.7
HM237546DW/HM237510	177.8	288.925	123.825	47.625	123.825	1085	2050	940	1300	32
LM241149NW/LM241110D	203.2	276.225	95.25	73.025	47.625	590	1350	940	1300	14.9
M541349/M541310D		292.1	109.538	84.138	49.212	825	1710	940	1300	21.9
220KBE30+L	220	340	90	80	39 000	725	1478	840	1100	30.8
EE126098/126151CD	249.25	38l.000	171.45	127	76.2	1407	3066	690	920	63.4
LM249747NW/LM249710D	253.975	347.662	101.6	69.85	50.8	775	1650	630	840	23.8
HH255149D/HH255110	279.4	457.2	244.475	106.363	244475	3670	8440	580	770	181
45T564624T		457.2	244.48	94	244.48	2743	5863	580	770	166.5
HH258249TD/HH258210	303.212	495.3	263.525	114.3	263.525	4023	9363	500	660	223.8
L357049NW/LM961511D	304.8	393.7	107.95	82.55	53.975	905	2260	500	660	30.6
332169A	305.07	500	200	60	200	2100	4300	500	660	147.7
LM961548/LM961511D	342.9	457.098	142.875	10l.600	63.5	1254	3411	480	630	60.4
L163149/L163110CD	355.6	444.5	136.525	111.125	60.325	1133	3538	420	560	44.6
NA231400/231976CD		501.65	146.05	107.95	73.025	1762	3853	410	540	88
HM265049/HM265010D	368.249	523. 875	214.312	169.862	101.6	2714	6903	410	540	143
HM265049TDS/HM265010S	368.3	523. 875	185.738	79.375	185.738	3165	7555	410	540	134.3
M270749ADW/M270710	447.675	635	223.838	95.25	223.838	4317	11416	320	440	239
EE243196/243251CD	498.475	634.873	177.8	142.875	80.962	2356	6893	320	440	132.2
600KBE030+L/P6	600	870	250	200	111	4920	11950	250	330	467
