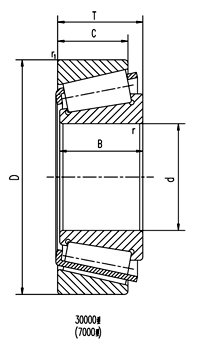

Bearing Number	Principal Dimensions					Basic Load Ratings		Limiting Speeds		Wt
	d	D	T	B	C	Cr	Cor	Grease	Oil
	mm					KN		r/min		kg
32930	150	210	38.5	36	31	200	385	1500	2000	4.56
32030		225	48.5	45	38	255	455	1400	1900	6.85
32030E		225	48	48	36	356	610	1400	1900	6.4
30230		270	49	45	38	490	680	1300	1800	11
32230		270	77	73	60	750	1175	1200	1700	18.7
30330		320	72	65	55	840	1085	1100	1600	25.2
32330		320	114	108	90	1275	1865	950	1400	42.7
32932	160	220	38.5	36	3l	215	400	1300	1800	3.8
32032X2		240	51.5	48	41	400	675	1100	1600	7.7
30232		290	52	48	40	530	730	1100	1600	13.4
32232		290	84	80	67	890	1420	1100	1600	23.4
30332		340	75	68	58	930	1210	1000	1500	28.3
32332		340	121	114	95	1400	2230	1000	1500	51.7
32934	170	230	38.5	36	31	255	460	1400	1900	4
32034		260	57.5	54	46	440	774	1400	1900	10.1
30334		360	80	72	62	1040	1360	1100	1600	11.7
32334		360	127	120	100	1530	2315	950	1400	60.3
32936	180	250	45	45	34	335	685	1000	1500	6.54
32036		280	64	64	48	600	1035	950	1400	14
32035X2		280	64.5	60	52	540	900	950	1400	13.4
30236		320	57	52	43	540	825	950	1400	17.8
32236		320	91	86	71	1040	1710	950	1400	30
30336		380	83	75	64	1120	1500	900	1300	45.5
32938	190	260	45	45	34	315	690	1100	1400	6.8
32938X2		260	45.5	42	36	350	700	1100	1600	6.52
31038		290	51	46	40	350	610	950	1400	10.5
32038		290	64.5	60	52	475	880	950	1400	15.3
30238		340	60	55	46	700	980	950	1400	2l.4
32238		340	97	92	75	1160	1880	950	1300	35.8
32940	200	280	51.5	48	41	350	745	1000	1500	8.8
32040		310	70	70	53	730	1300	950	1400	19
32040X2		310	70.5	66	56	550	1050	950	1400	17.6
30240		360	64	58	48	710	1100	900	1300	25.4
32240		360	104	98	82	1375	2205	900	1300	43.5
32944	220	300	51.5	48	41	355	840	950	1400	10.1
32044		340	76	76	57	835	1490	900	1300	24.3
32044X2		340	76.5	72	62	710	1335	900	1300	23.3
30244		400	72	65	54	990	1460	900	1300	35.1
32244		400	114	108	90	1660	2640	900	1300	58.9
32948	240	320	51.5	48	41	355	770	900	1300	10.8
32048		360	76	76	57	850	1555	850	1200	25.8
32048X2		360	76.5	72	62	700	1410	850	1200	23.8
32248		440	128	120	100	1870	2960	800	1100	79.1
32952	260	360	63.5	63.5	48	665	1410	800	1100	18.8
32952X2		360	64.5	60	52	530	1200	800	1100	19.2
32052		400	87	87	65	1130	2090	800	1100	37.8
32052X2		400	87.7	82	71	1060	1935	800	1100	36.8
32252		480	137	130	106	2220	3775	750	1000	100
30352		540	113	102	85	2115	2940	670	900	111.3
30352X2		540	114	102	85	1950	2755	670	900	111.8
32956	280	380	63.5	63.5	48	680	1490	800	1100	20
32956X2		380	64.5	60	52	545	1255	800	1100	21.3
32056		420	87	87	65	1150	2175	750	1000	40
32056X2		420	87.7	82	71	990	1975	750	1000	39.6
32960	300	420	74.5	72	62	650	1810	700	950	30.2
32060		460	100	100	74	1445	2720	700	950	56.5
32060X2		460	100.7	95	77	1370	2530	700	950	55.8
32064	320	480	100	100	74	1400	2940	630	850	62.7
32968	340	460	76	76	57	950	2120	630	850	34.7
31068		520	86	82	64	1175	2000	600	750	55.5
32972	360	480	76	76	57	990	2290	500	630	36.7
31072X2		540	86	82	64	1330	2380	400	500	59.3
31080	400	600	95	90	67	1040	2128	400	500	84
31084	420	620	95	90	70	1580	2990	380	480	88
329/500	500	640	87	82	72	1565	3675	350	460	66.2
310/500		720	110	100	82	2130	4105	320	420	120
310/630X2	630	920	135	128	94	3150	6800	280	380	268
310/900X2	900	1280	190	170	135	5910	13885	100	150	702
